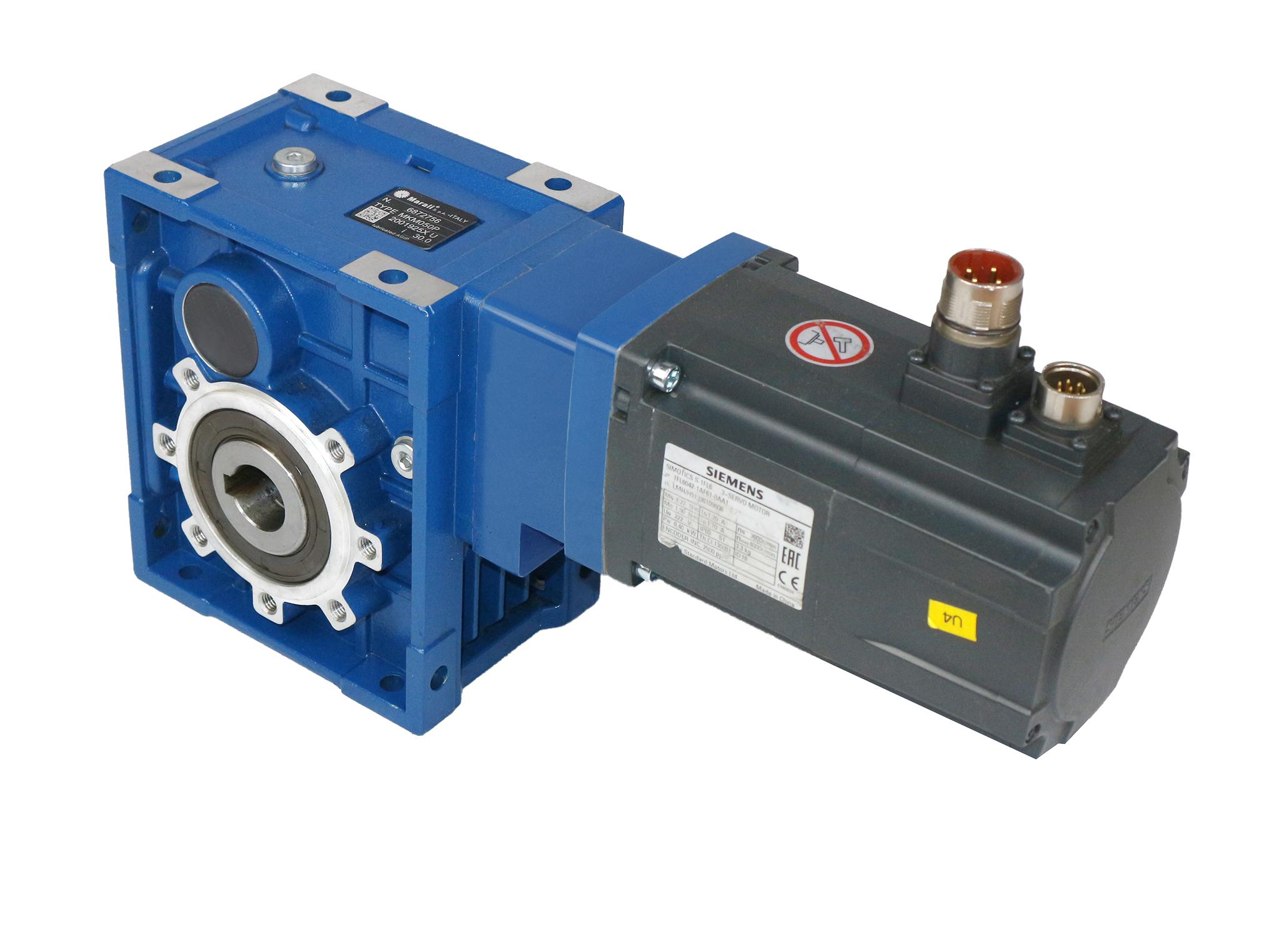

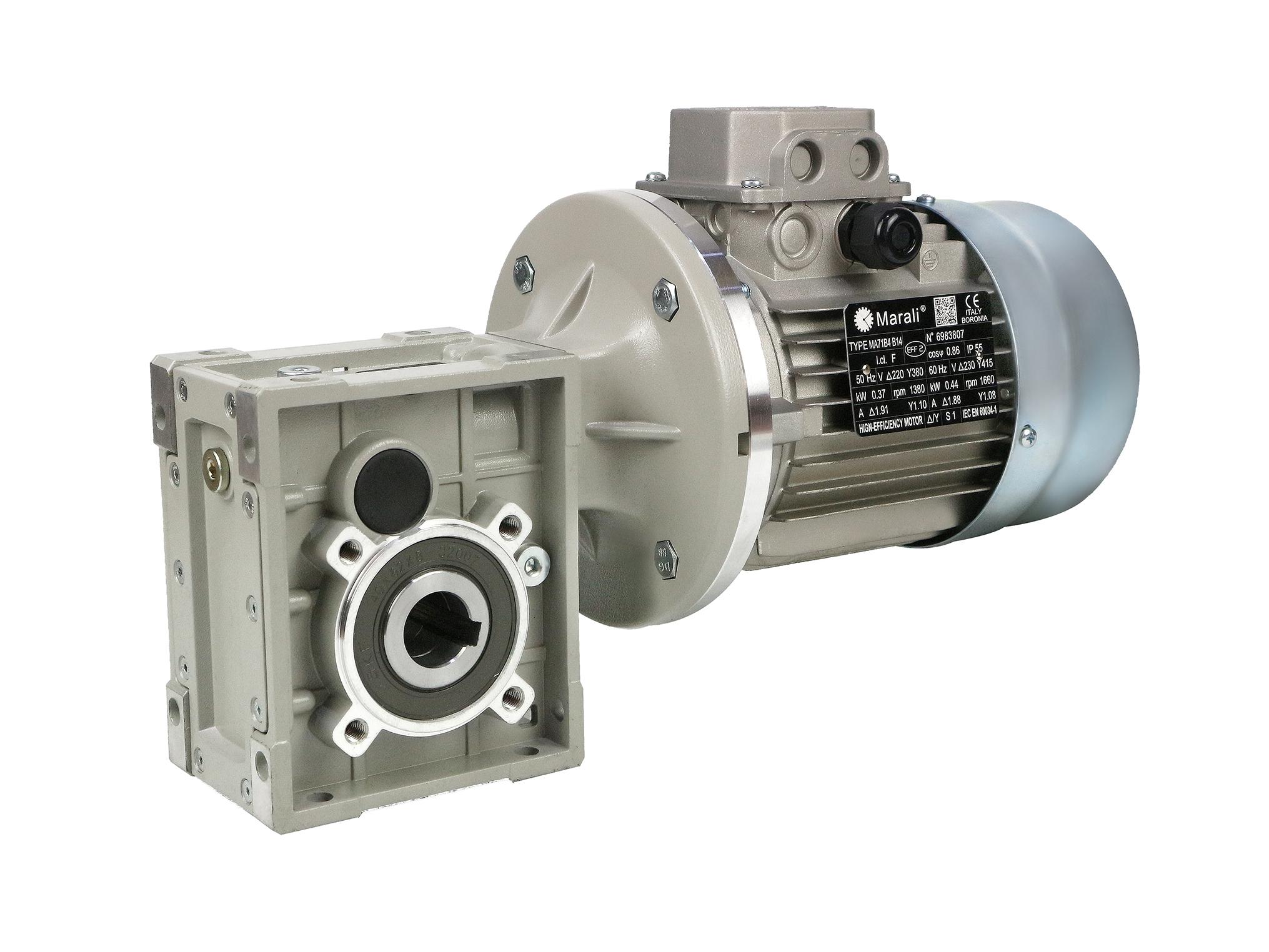

~Products features
1, using hypoid gear (not worm gear worm structure), full gear transmission speed ratio up to 300
2. Large output torque and high efficiency, the torque is more than 95% higher than the standard worm gear series
3, high-quality aluminum alloy casting, light weight without rust; Transmission stable noise low temperature rise; Exquisite and beautiful long life
4, speed ratio 1:7.5-1:300, omni-directional universal installation, convenient and flexible use
5. The installation size is compatible with the size of MRV series worm gear and worm reducer (MKM050 and MRV050 are slightly different in size)
6, modular, can be combined with IEC, servo step, braking, frequency conversion, explosion-proof motor and other driving requirements
7. With standard IEC motor dust clearance of 15 arc minutes, for example, servo stepper motor can be customized (10 arc minutes arcmin)
8. Machine cost reduction: if you are using the worm gear reducer RV063 with 0.75kw, now use MKM050 with 0.55kw to achieve the same torque
Main materials/materials
Gear: 20CrMnTi, carburizing and quenching, gb grade 5 precision, tooth surface hardness 56-62hrc, after fine grinding to maintain carburizing layer thickness 0.3mm-0.5mm
Box body: high quality aluminum alloy casting.
