Product Features/Product Overview
1. High precision, return clearance of 1 arc minute, end face runout ± 0.001mm, radial runout ± 0.001mm,

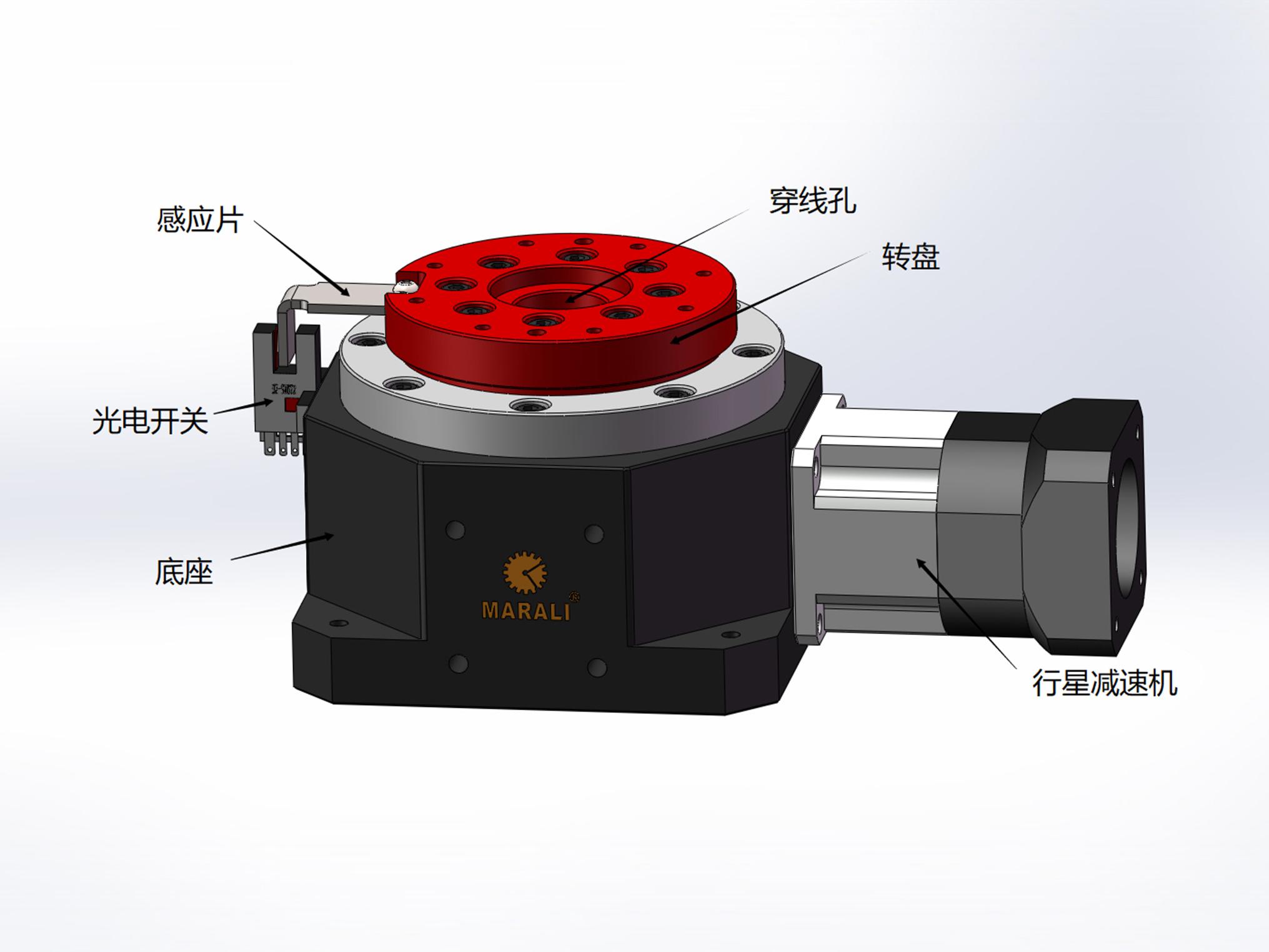

2.360 ° electronic indexing for precise positioning, configurable with photoelectric switch and sensing chip, easy to zero at the origin
3. Strong universality, matching with various brands of servo stepper motor interfaces, precision machining of rotating disc surface, precise grinding with bright and seamless finish
4. High load cross roller bearings, with an internal structure arranged in a 90 ° straight cross arrangement, can withstand large axial and radial loads
5. Low running balance noise, using fluorine rubber oil seals that are corrosion-resistant and resistant to acid and alkali, and have strong sealing performance
6. Large aperture hollow design, convenient wiring and piping, rotating disc can directly lock the workpiece, eliminating the need for self-made fixtures and jigs
7. The combination of a right angle angle converter and a hollow rotating platform can achieve high speed ratio and high torque
